Phase Description:

converting the project into a product.

Phase Supplies:

Hardware components:

- the circuit components from version 1

- Wire with Standard DC 2.1mm Male Plug 30Cm

- the manufactured solar panel from version 2

- Faux Leather

- PCB circuit

- plywood sheet

Software components:

- Proteus ISIS

-Proteus ARES

-Solid Works

Tools:

-Solder Wire

-Soldering Iron

-Multimeter

Machines :

- Sewing machine

-Modela

-Laser Cutter

Phase Steps:

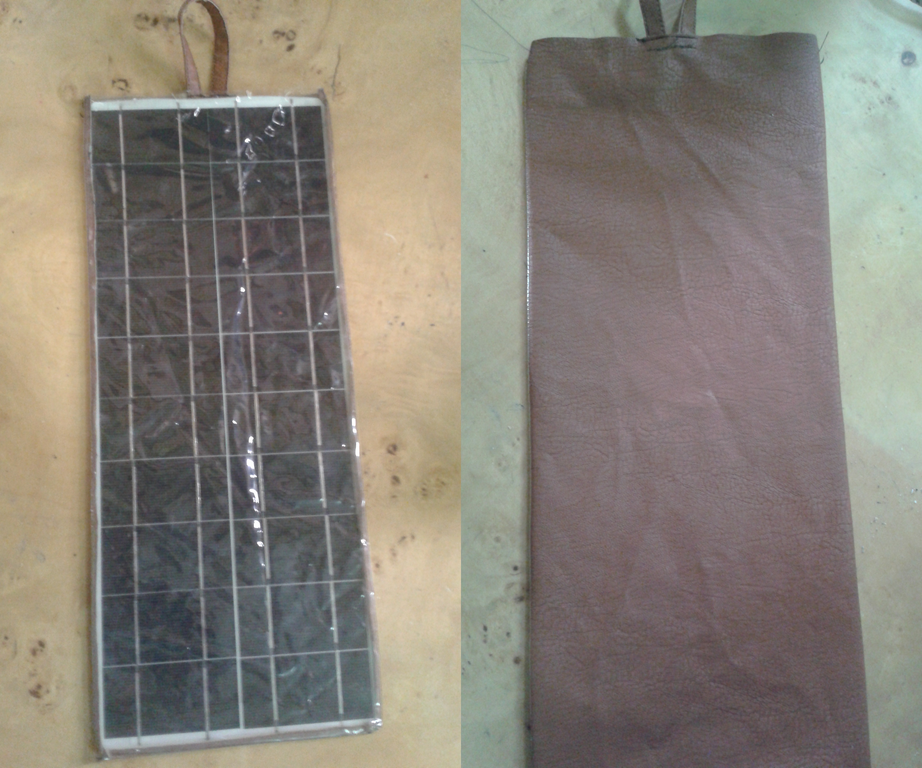

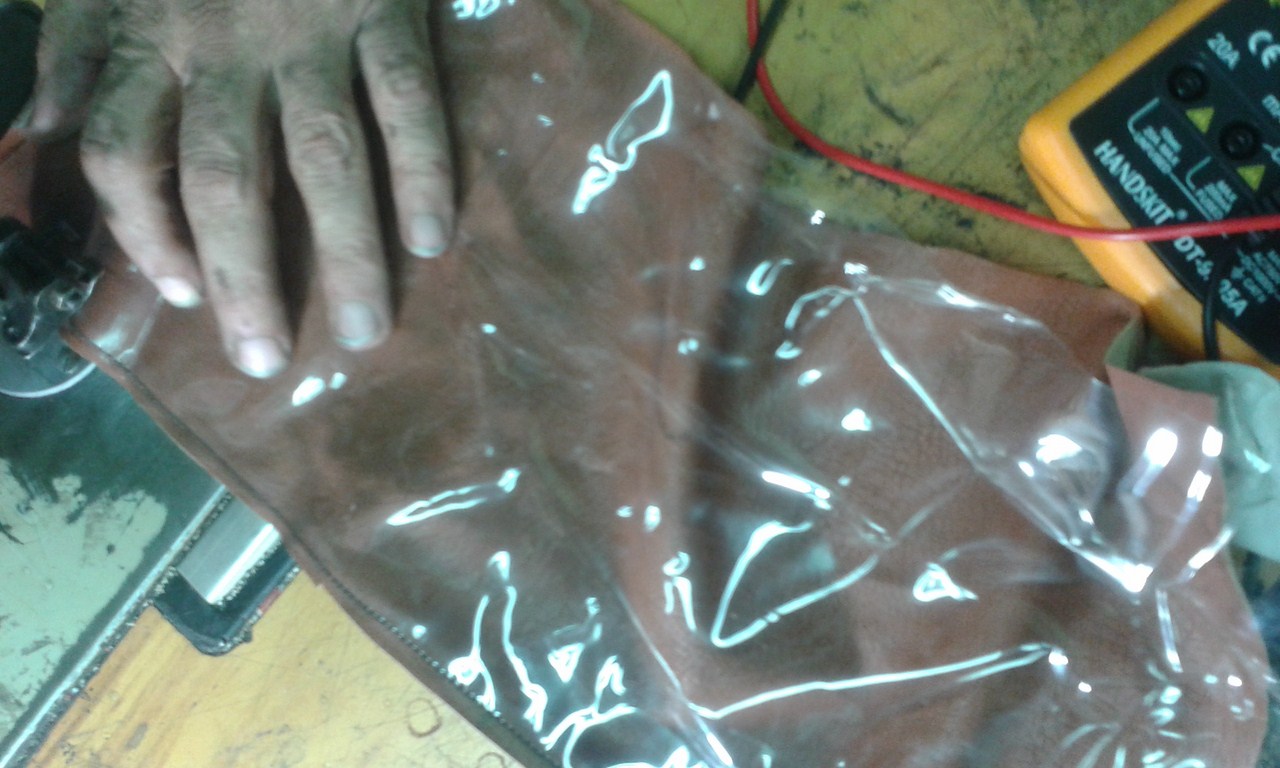

-Making a custom cover for the solar module using Sewing machine and the Faux leather.

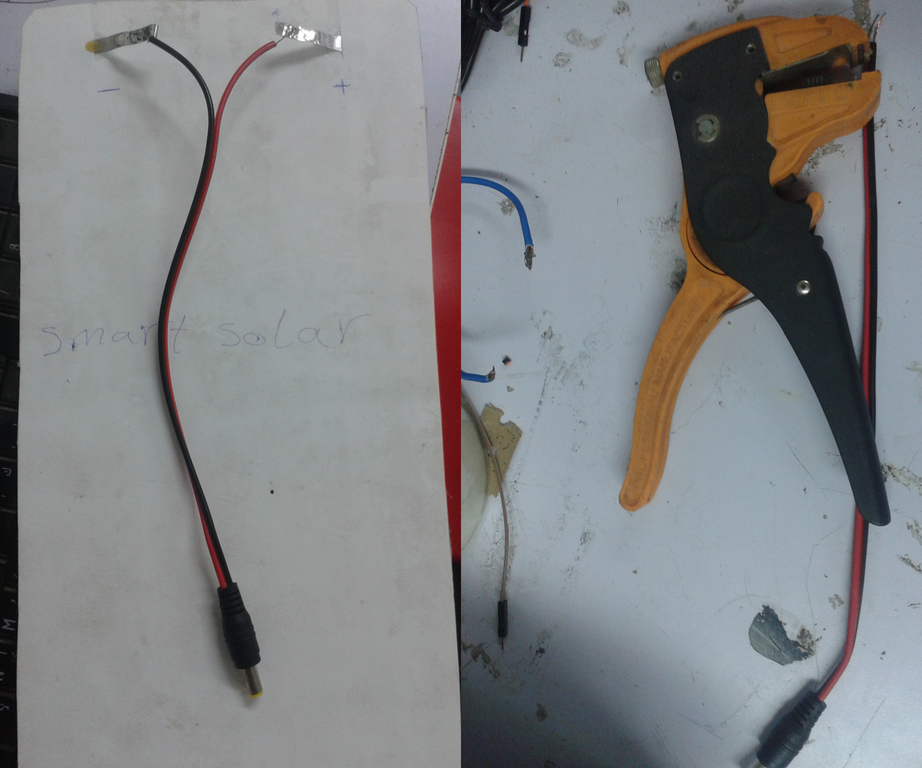

Making a decent o/p for solar module through welding the Wire with Male Plug using soldering Iron.

turning the charge control circuit from breadboard to PCB circuit :

- Making schematic Design on Proteus ISIS.

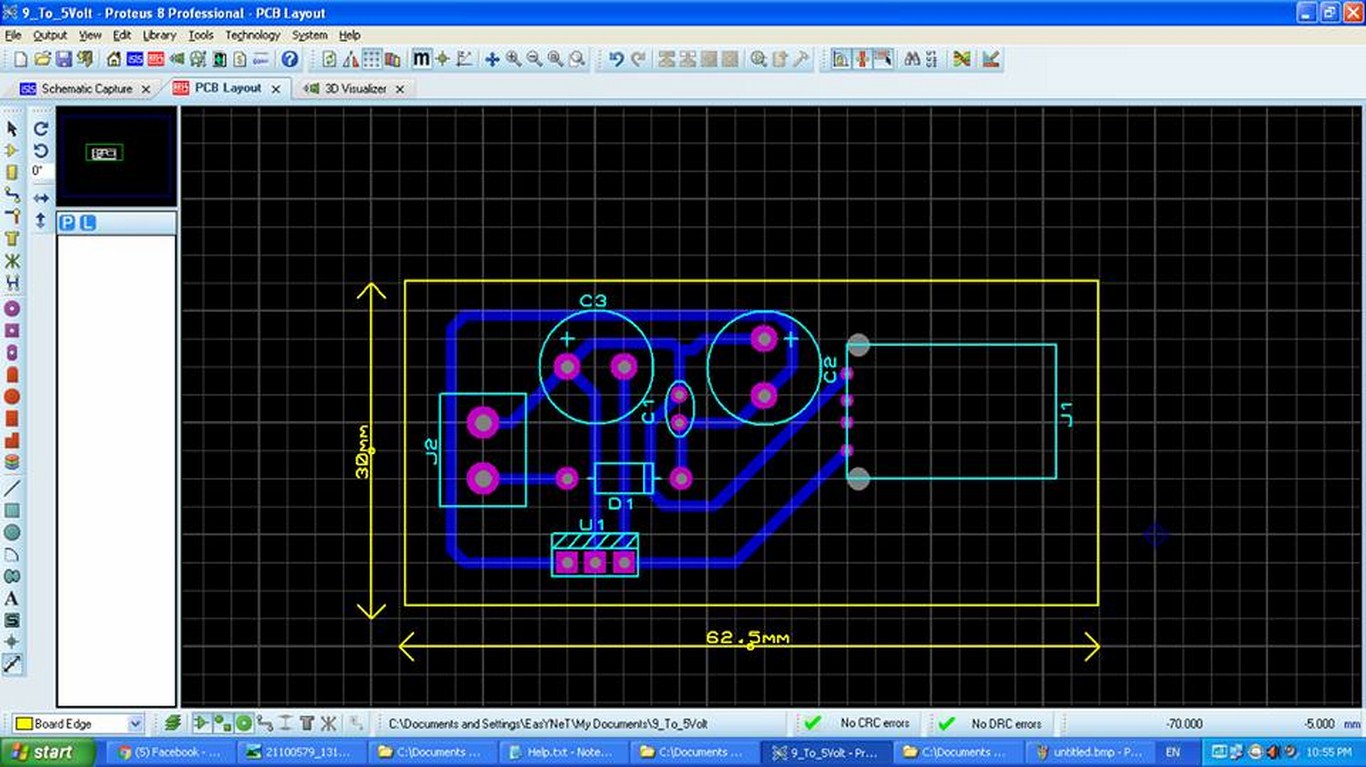

-Making PCB design on Proteus ARES.

- Exporting PCB layout design.

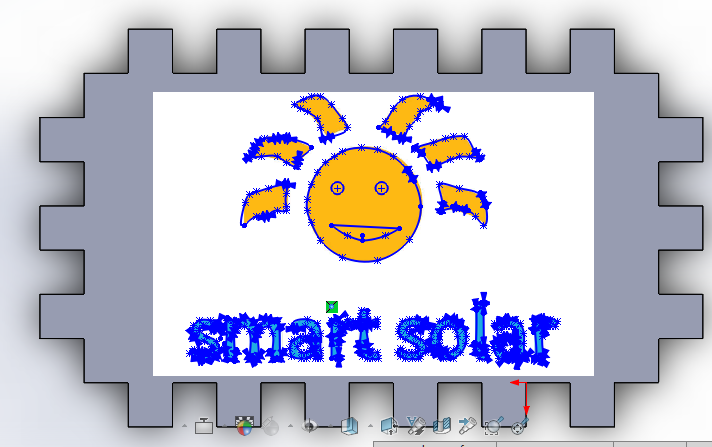

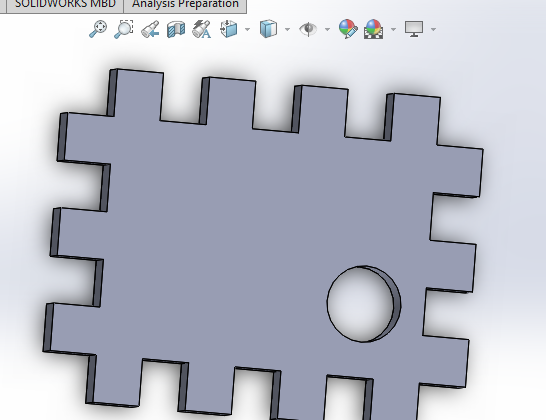

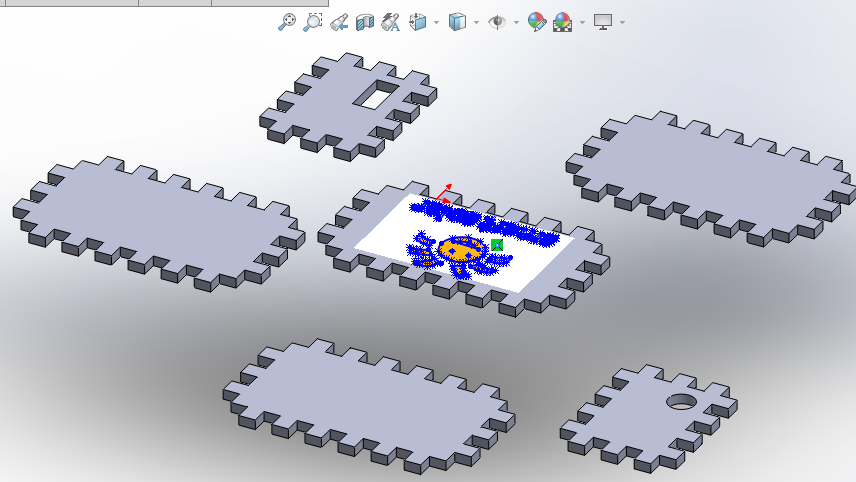

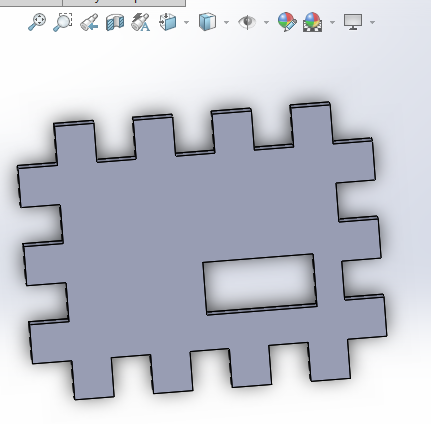

- Making a cover box for the charge control circuit

3rd version complete

3rd version Techanical Presentation
