Phase Description:

Make a charge control circuit that take voltage from 9v power supply or even more and get a 5V / 1A constant output

Phase Supplies:

Electronic components:

- 1n4007 diode

- 2electrolytic capacitors 10nF 16V

- ceramic capacitor 22pF (optional)

- Voltage regulator 7805

- female USB connector

- USB extension a/a cable

- (male- male) Jumper wires

- Bread board

Software components :

Tinkercad Circuits(online)

Tools:

- power supply

- Multimeter

Phase Steps:

-Simulation on Tinkercad Circuits.

-Breadboard installation

1st version complete

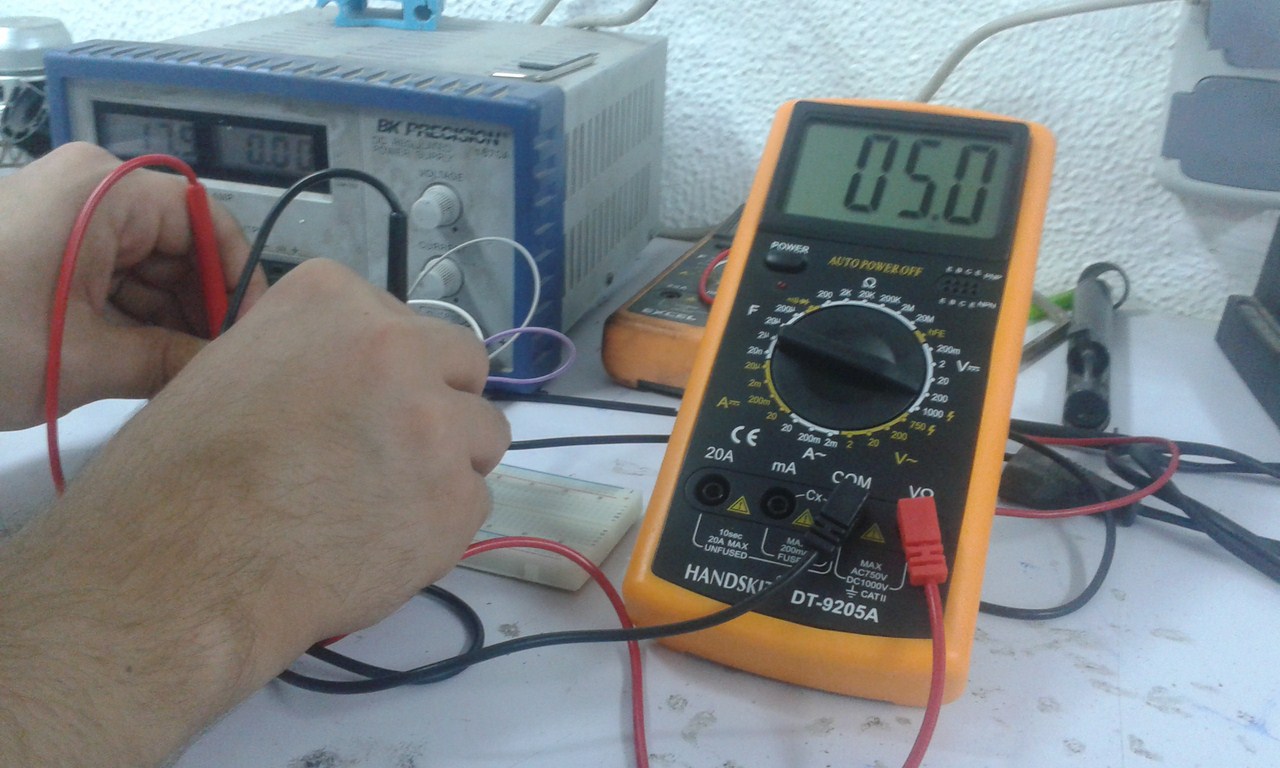

9v power supply trial

more than 9v power supply trial

1st Version Business/Techanical Presentation
